1969 Land Rover Series IIa Marine Blue


This 1969 Land Rover Series IIa will be receiving a full restoration as well as many of the options from our NAO Expedition Package.

Gallery

1969 Land Rover Series IIa Marine Blue before restoration.

This 1969 Series IIa is ready for a full restoration.

Under the skin, this Land Rover has rust and corrosion.

Even though the Land Rover looks to be in good condition, under the skin lurks lots of rust and corrosion.

The tear down begins.

The tear down begins...

Removal of the body.

The body is removed.

Completely rotted out frame.

The frame is completely rotted out.

Removal of drivetrain before disposing the old frame.

The drivetrain is removed and the frame is cut up for disposal.

Turner Engineering rebuilt engine.

The Turner Engineering rebuilt engine has arrived. You can see that this one is painted red and the other is light green. This one is a later five main bearing engine. The others have three main bearings. The later engines were painted red from the factory and also have all metric threads.

Michelin XZL 7.50 16s tires with steel belted side walls for military purposes.

The tires have arrived. They are Michelin XZL 7.50 16s. They are the only mud tire available with steel belted side walls which is why they are used on military vehicles. They also have a commercial grade rubber which doesn't seem to dry rot as fast as consumer grade tires. This is a good thing for rovers that don't see many miles as the tires will remain serviceable longer.

Badly rusted clutch and cracked engine block.

The clutch is badly rusted and we later discovered that the engine block is cracked.

Time to disassemble the bulkhead.

The bulkhead is ready for disassembly.

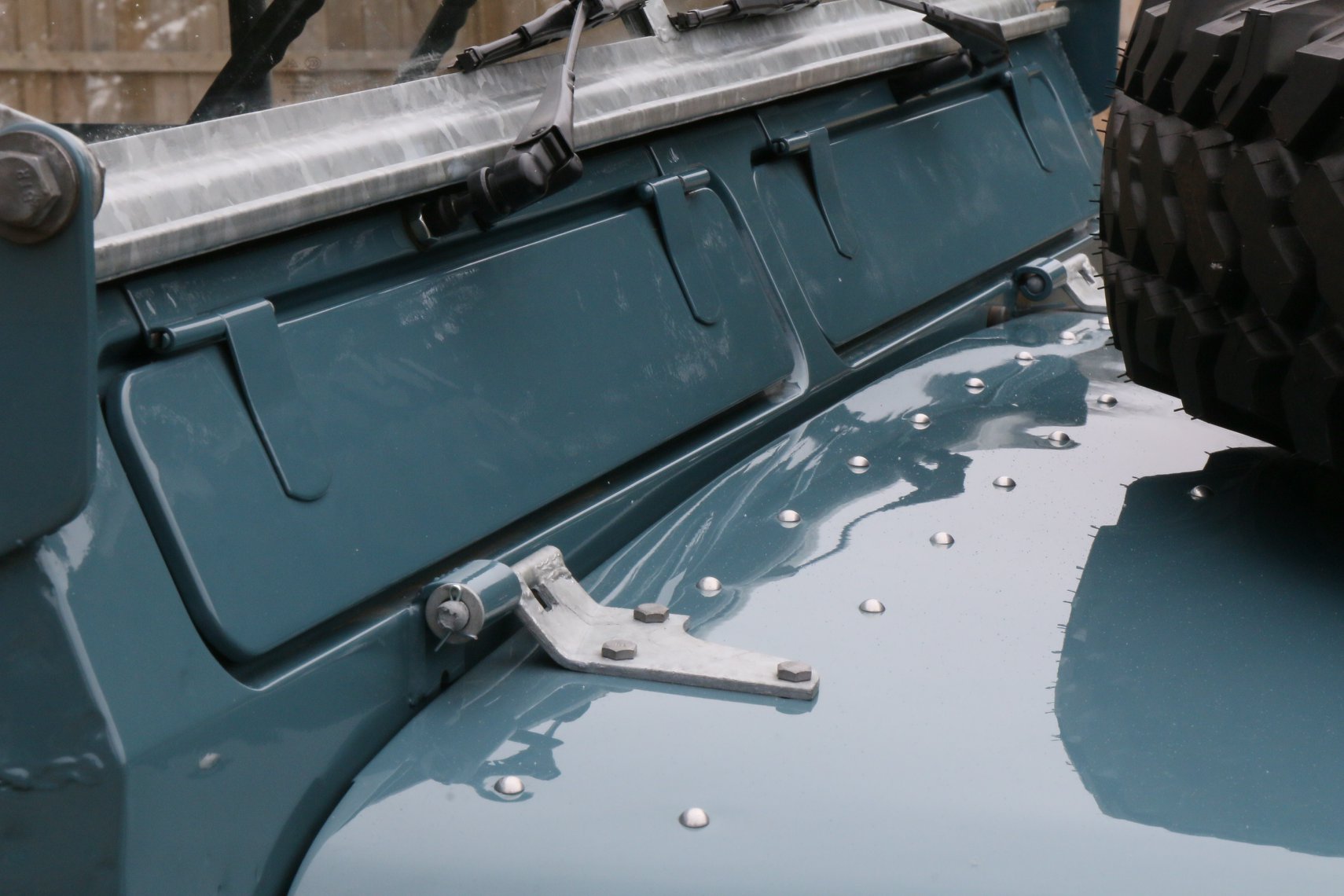

Rotted vent flap apertures.

The vent flap apertures are rotted. This does not look too bad but it is likely that more rust has formed inside and the metal is paper thin. There is also significant rust on the door posts, floors and dash tray. For these reasons we will not use this bulkhead.

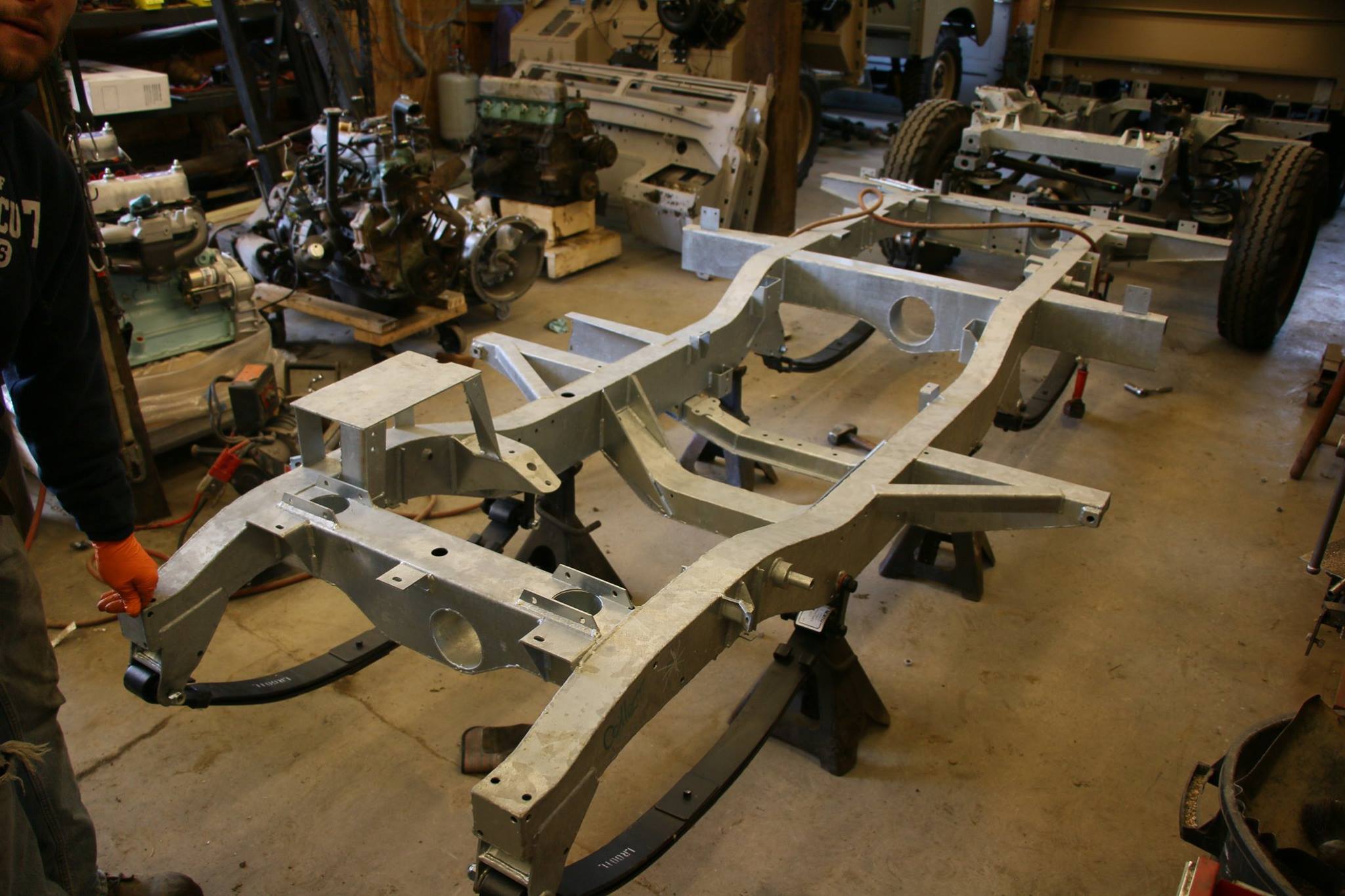

Parabolic spring galvanized frame.

The galvanized frame is being assembled with parabolic springs.

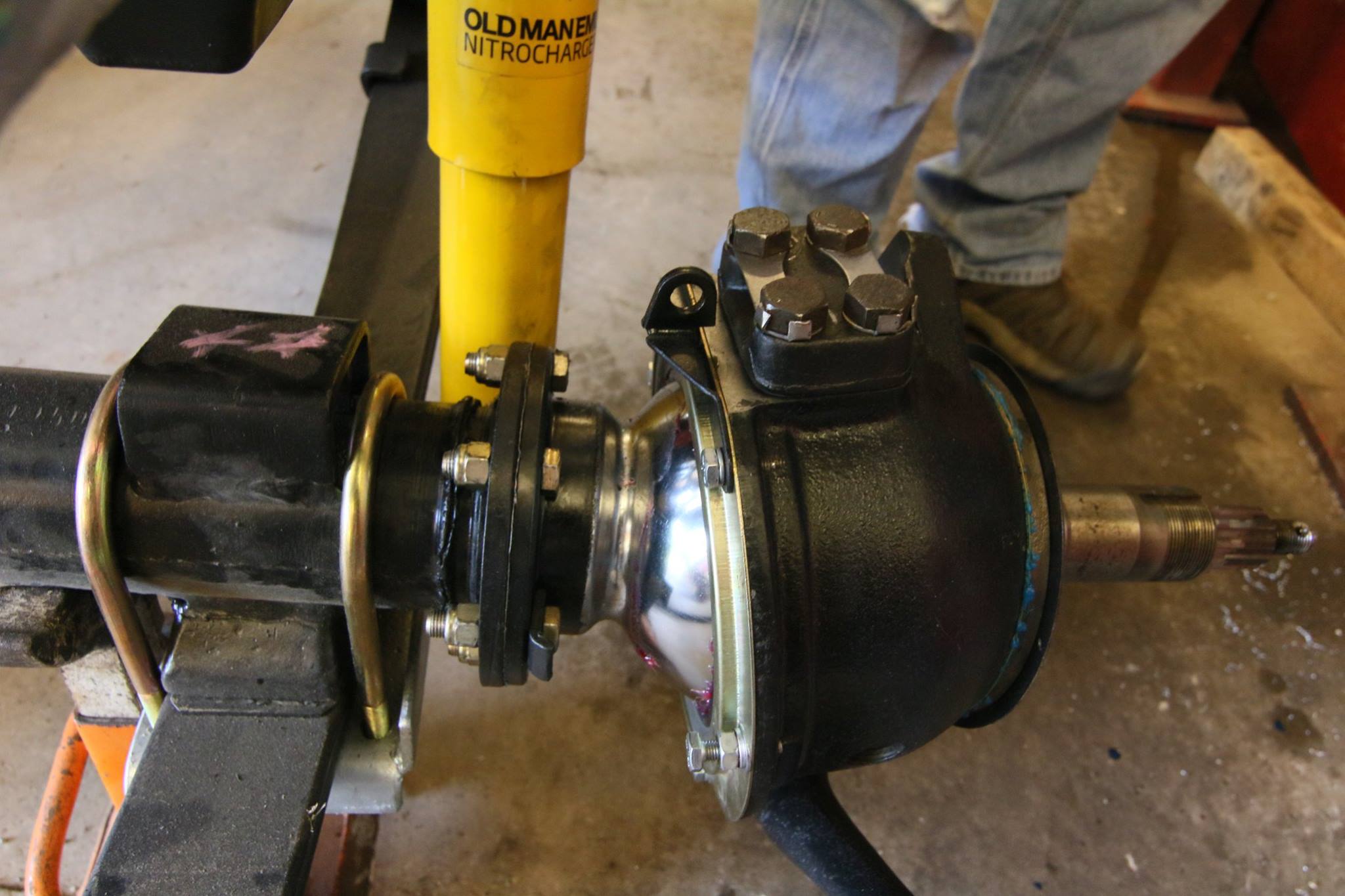

Rebuilt swivels with swivel balls, bearings and bushings.

The swivels have been rebuilt with new swivel balls, bearings and bushings. A differential guard is welded to the front axle.

Welding skid plate to front axle housing.

A skid plate is welded to the front axle housing.

Warn 8274 winch.

A Warn 8274 winch is installed in a Pangolin bumper with factory recovery points.

Land Rover Series IIa with Series III transmission.

The Series IIa originally came with a transmission with an unsynchronized first and second gear. We have installed a Series III transmission that is fully synchronized.

Land Rover Defender disc brakes.

Disc brakes have been added to the front axle. These are Defender disc brakes so parts will be easy to source for future repairs.

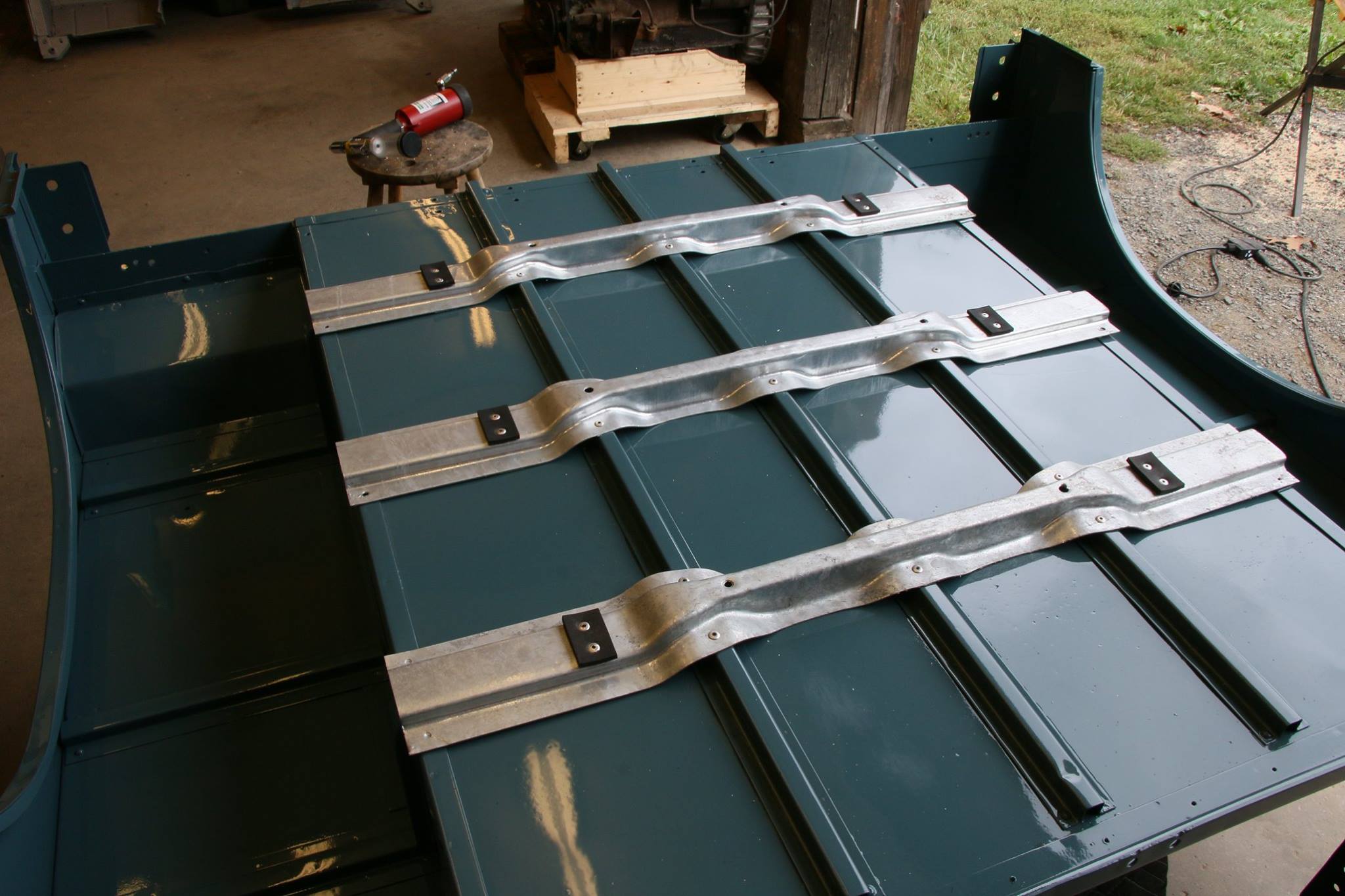

Galvanized under body supports.

The tub has been repainted. Galvanized under body supports are now installed.

The original bulkhead was too rough to use on this project. A much nicer late Series IIa bulkhead was sourced. We are now going to seam seal this bulkhead.

Stainless steel gas tank.

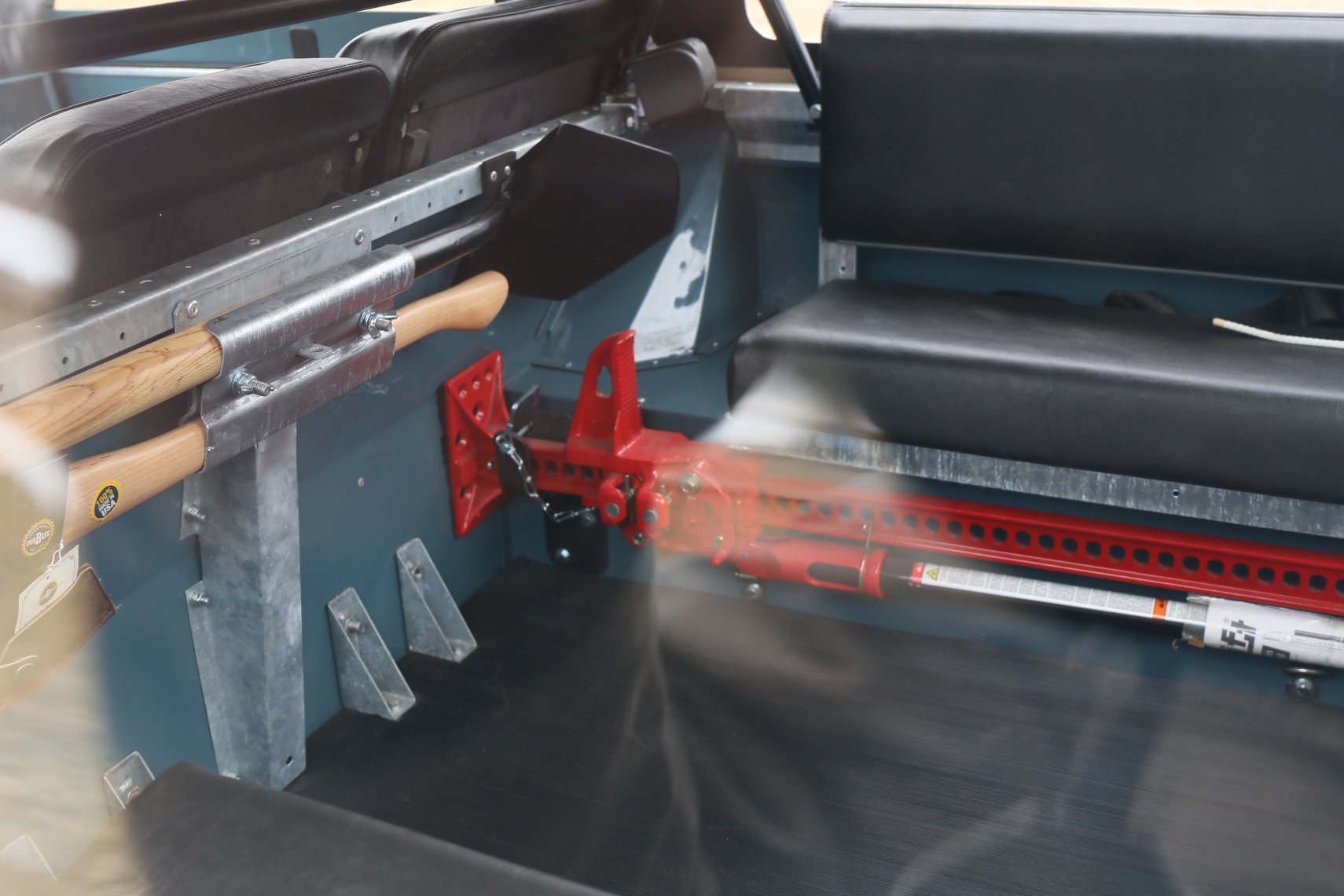

A high lift jack is added to the bed.

Turner Engineering 2.25

Genuine Land Rover cargo lashing points are added.

Rear axle installed on parabolic springs shown here.

These are nice because they have a plastic bushing that keeps the ring from slapping around when not used.

High torque starter.

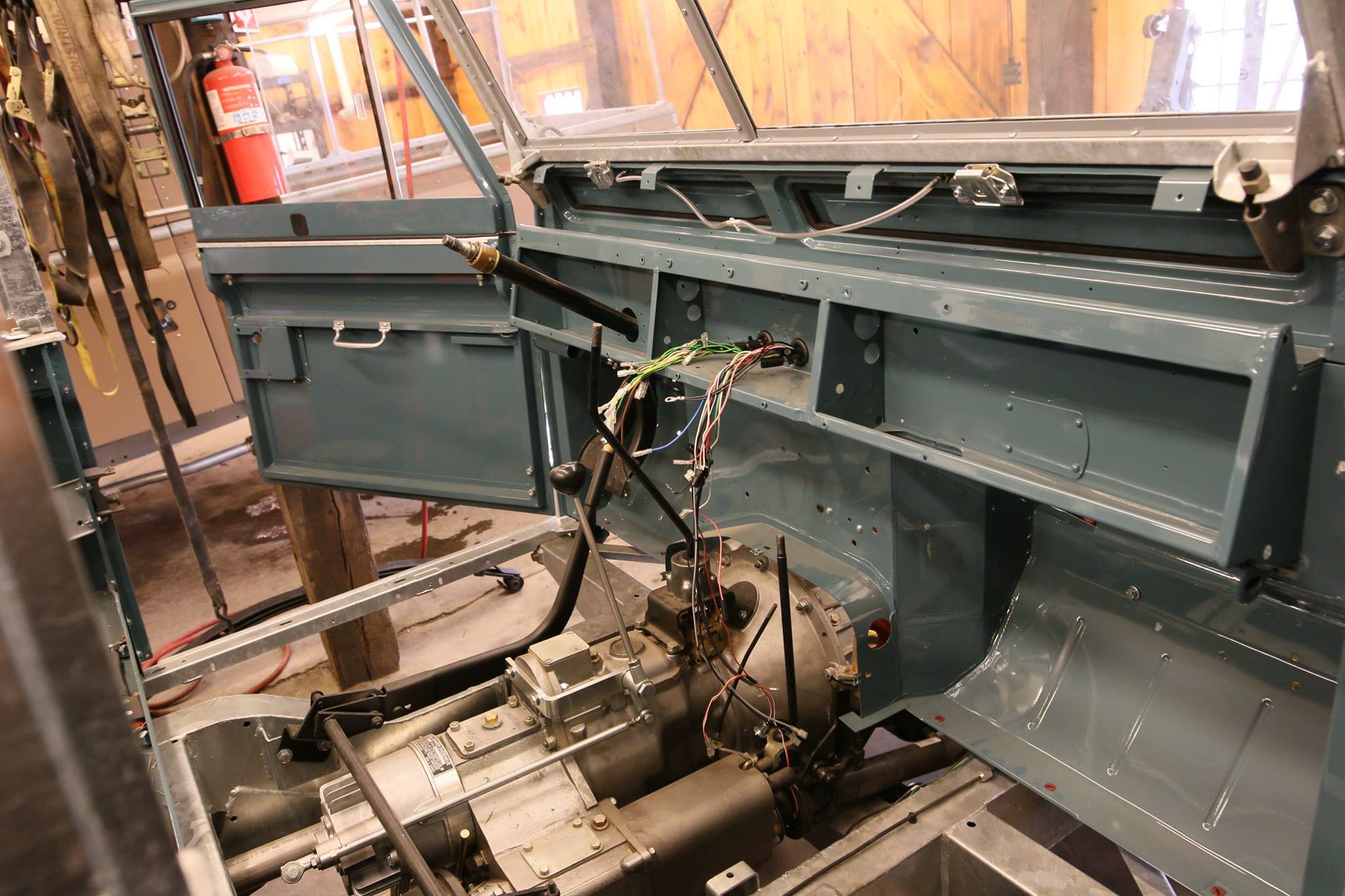

The bulkhead is installed and the doors are now being aligned.

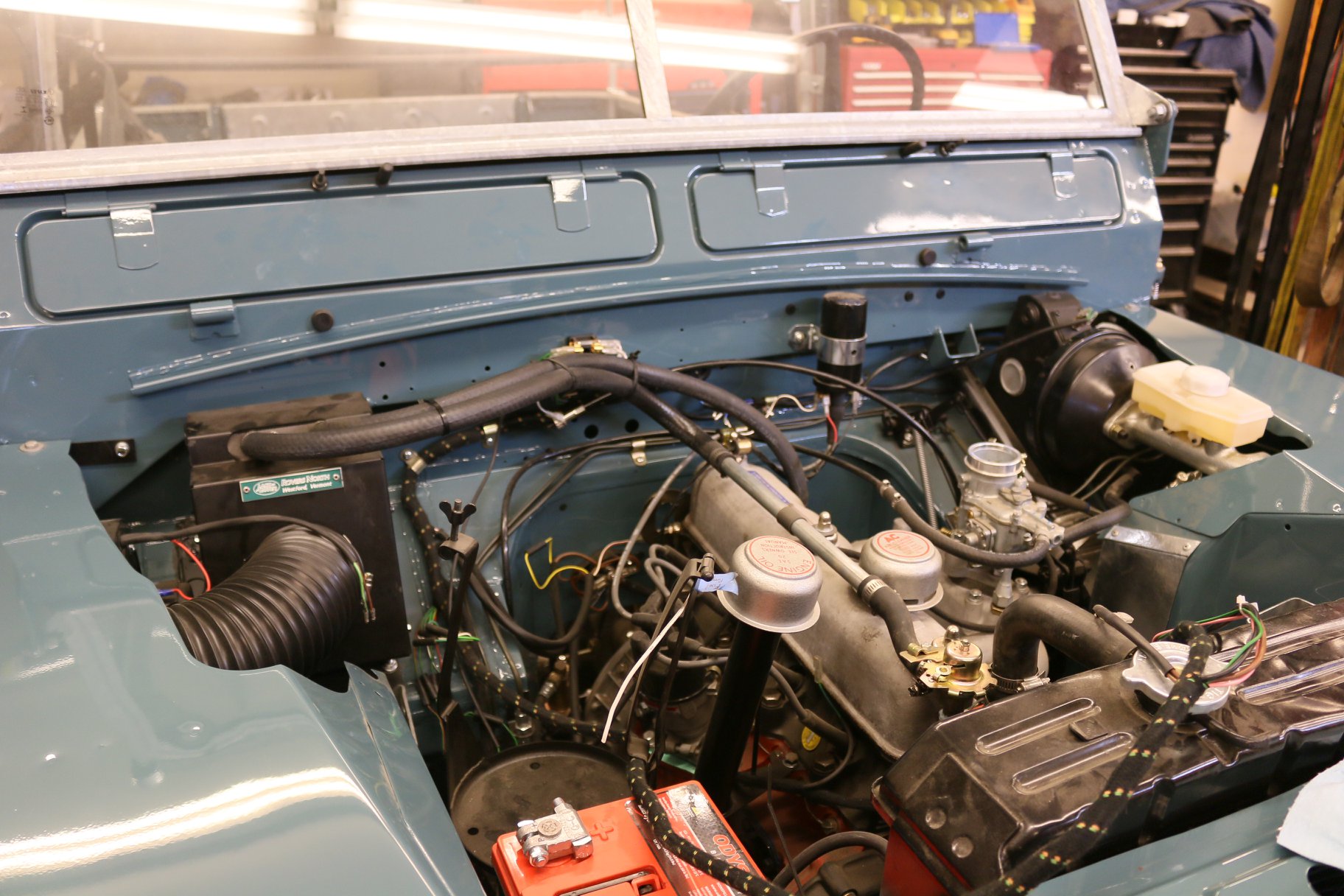

The wiring harness is installed.

An overdrive from Global Roamer is installed.

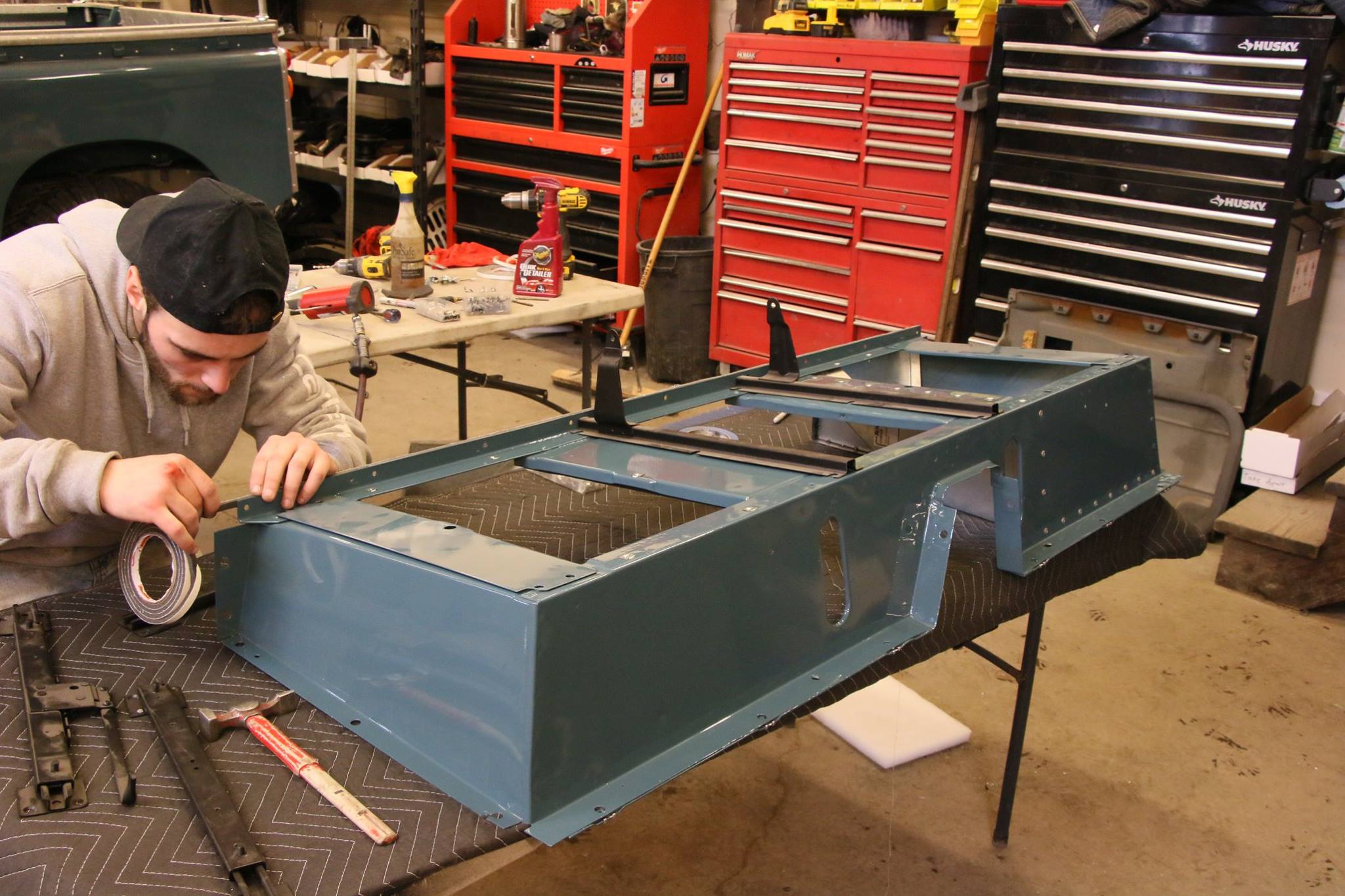

The seatbox is being prepped for installation.

New old stock reflectors are added to the rear quarter panels. Lucas taillights are installed as well as NOS turn signal lenses. These lights and reflectors are unique to the NADA Land Rovers.

A large Odyssey AGM battery is installed. This is one of the best batteries on the market. A Hella horn is added.

The original fenders were full of body filler and could not be salvaged. Fenders are no longer available new so good original units were sourced and restored.

The fender is painted inside and out.

You can see how straight these fenders are.
