Specs for 1969 Series IIa Marine Blue

Vehicle

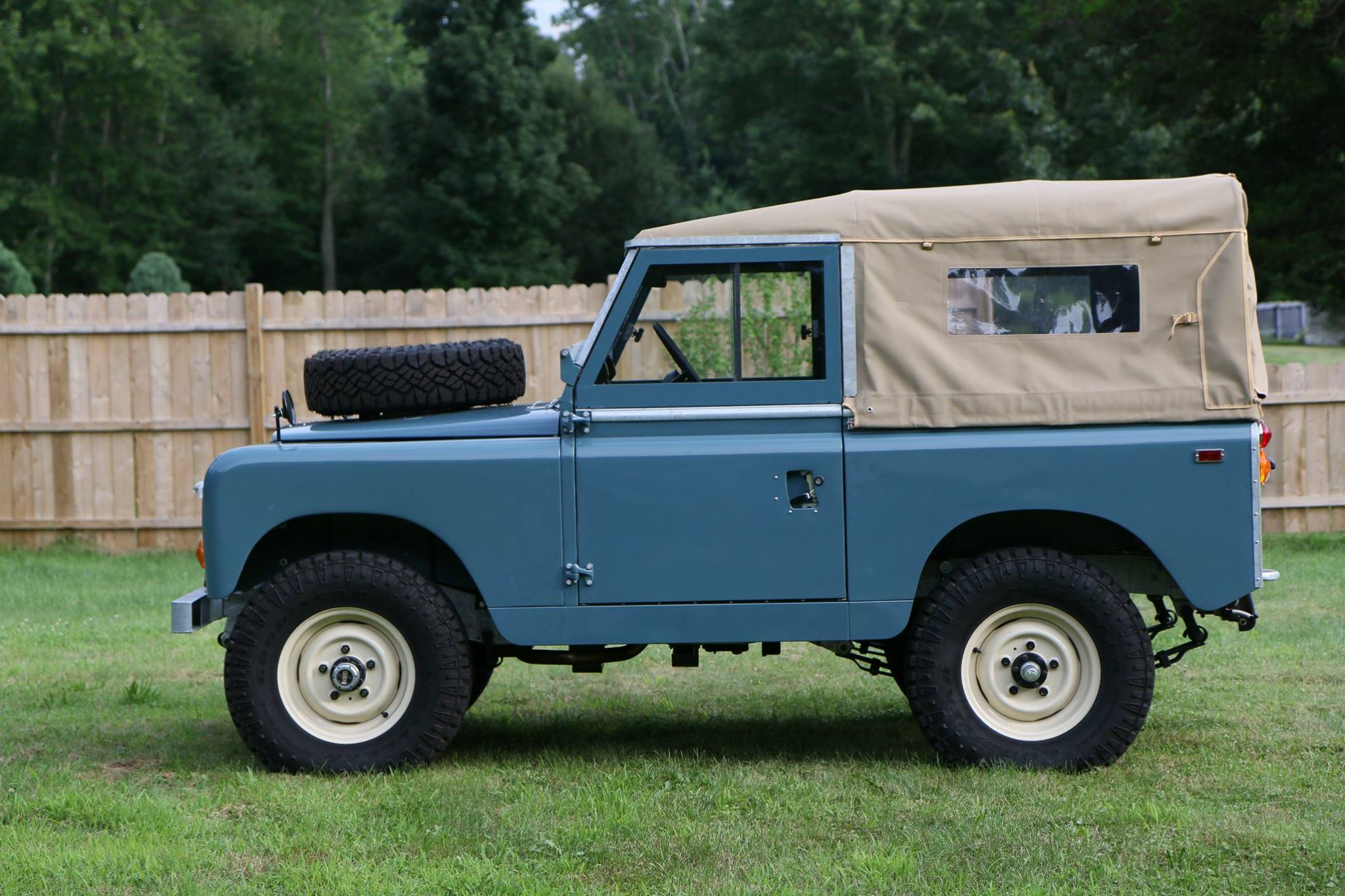

• 1969 Land Rover Series IIa

Engine

• Turner rebuilt 2.25 engine
• Pertronix electronic ignition
• New Weber carburetor
• New water pump
• New motor mounts
• New alternator
• Refurbished radiator
• New fan belt
• New radiator hoses
• New hose clamps
• New thermostat
• Pertronix coil
• New spark plug wires
• New spark plugs
• NRP stainless steel exhaust system
• Spin on oil filter adapter
• High torque starter

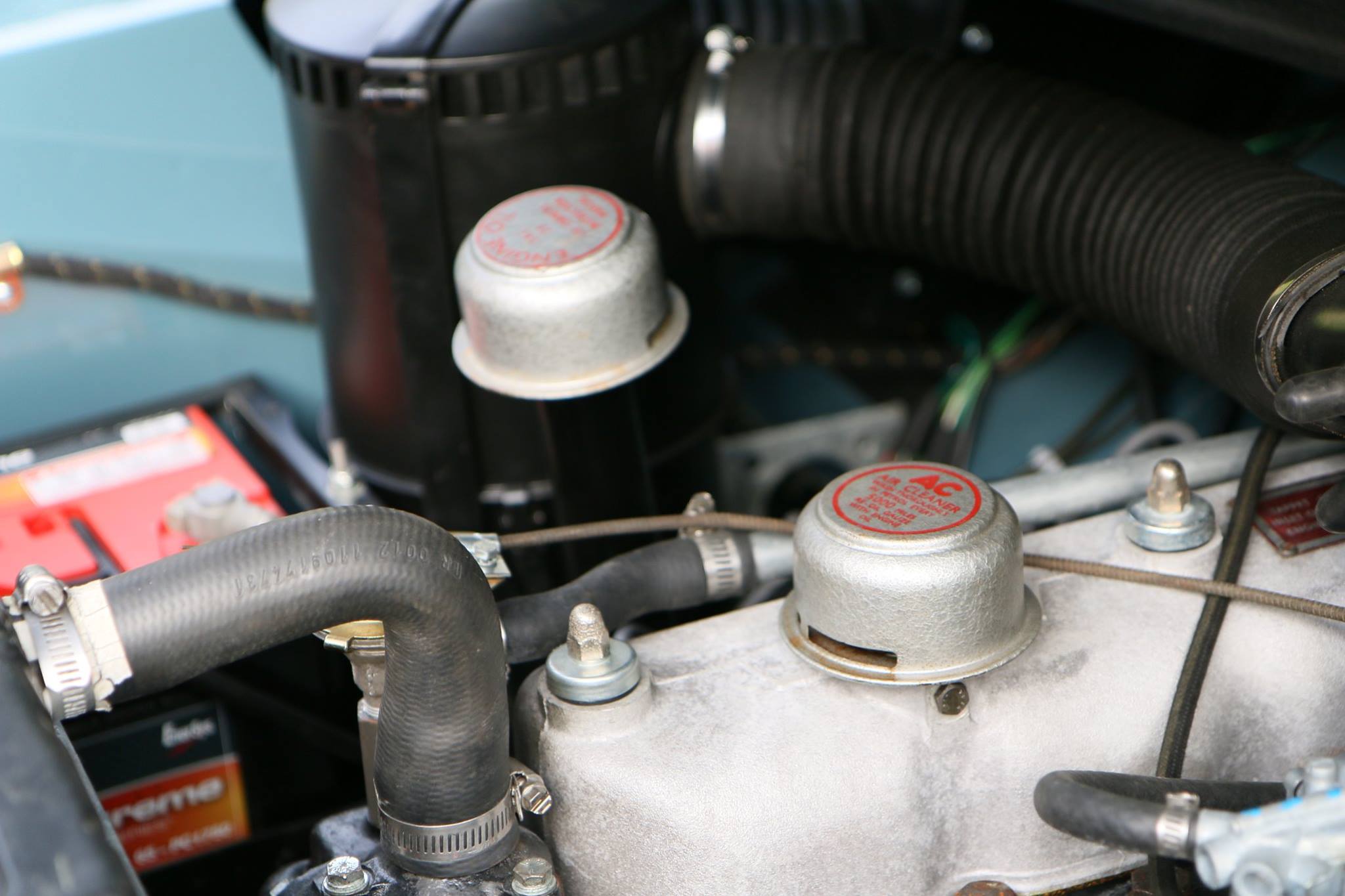

• NOS valve cover breather
• NOS oil fill cap

Transmission and Transfer Case

• Whitehouse rebuilt Series III synchronized transmission
• Rebuilt transfer case
• New clutch
• Flywheel resurfaced
• New clutch push rod
• New clutch slave cylinder
• New clutch hose
• New clutch steel lines
• New clutch master cylinder
• New shift knobs
• New shifter o-ring
• New front and rear drive shafts
• New transmission mounts
• Global Roamer overdrive

Frame

• New galvanized frame
• Front recovery rings

Axles

• Axle housings powder coated
• Ashcroft rebuilt front and rear differentials
• New swivel balls
• New swivel pins and bushings
• New swivel bearings
• Swivels shimmed to correct preload
• New swivel seals
• New wheel bearings
• New hub seals
• New hub seal races
• Late series III rear half shafts
• 24 spline rear drive flanges
• AVM locking hubs

Suspension

• Parabolic springs
• Old Man Emu shocks
• Galvanized spring mounting plates
• New shackles
• New shackle bolts and nuts
• New U bolts

Body

• Body panels stripped to bare aluminum and repainted both sides in Marine
• Blue Glasurit
• Underside of body panels Raptor Lined
• Bulkhead galvanized
• Swing away tailgate
• All cappings galvanized
• Hood frame galvanized
• Windshield frame galvanized
• Sills galvanized
• Tire carrier galvanized
• Under body supports galvanized
• New vent flap seals
• New door weather stripping
• New bulkhead to windshield frame seal
• New floor hardware
• New windshield glass
• New lower doors

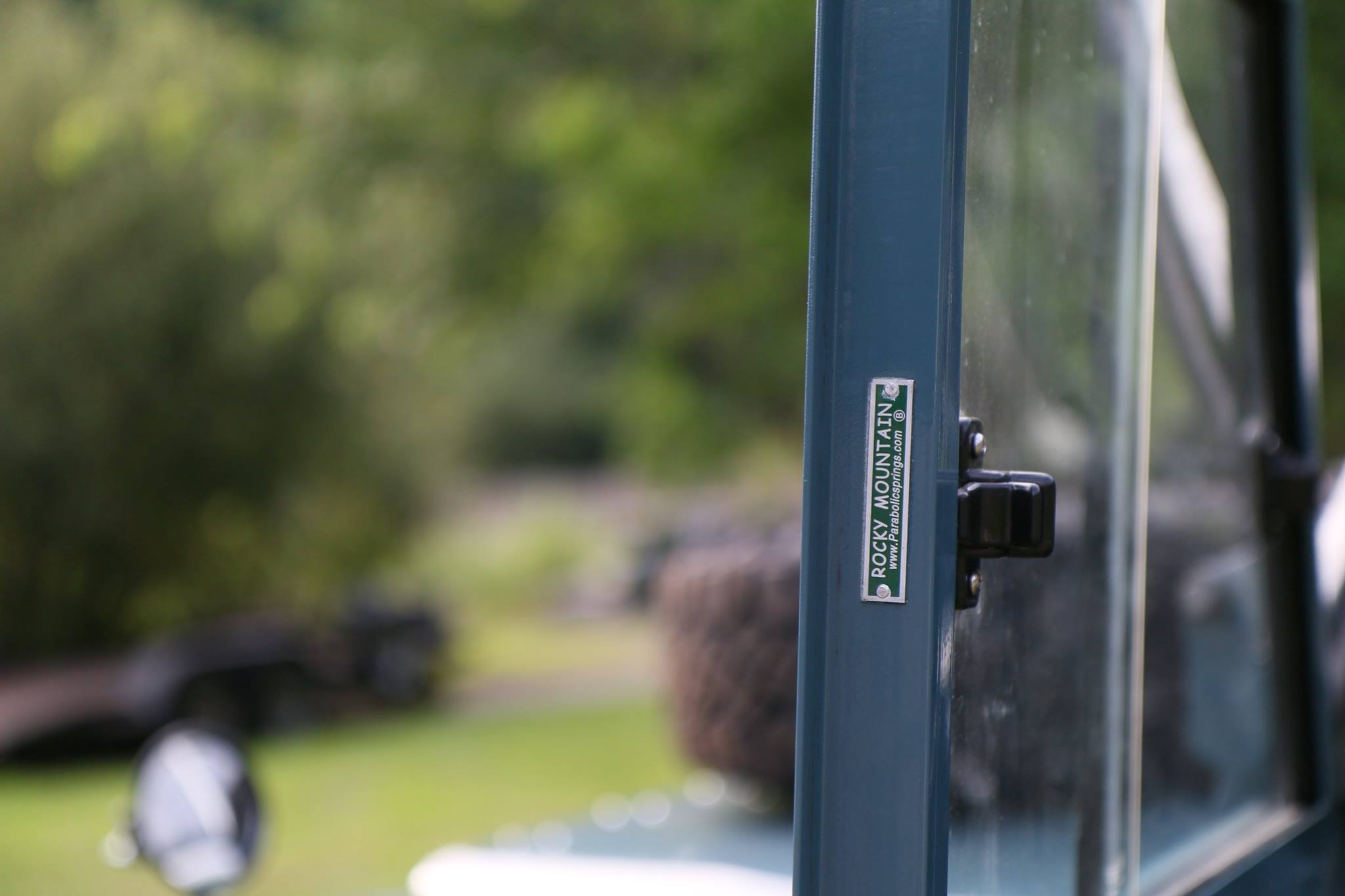

• Rocky Mountain extruded aluminum door tops
• New hammer rivets and sealed pop rivets
• New Defender door latches
• Hinges rebuilt

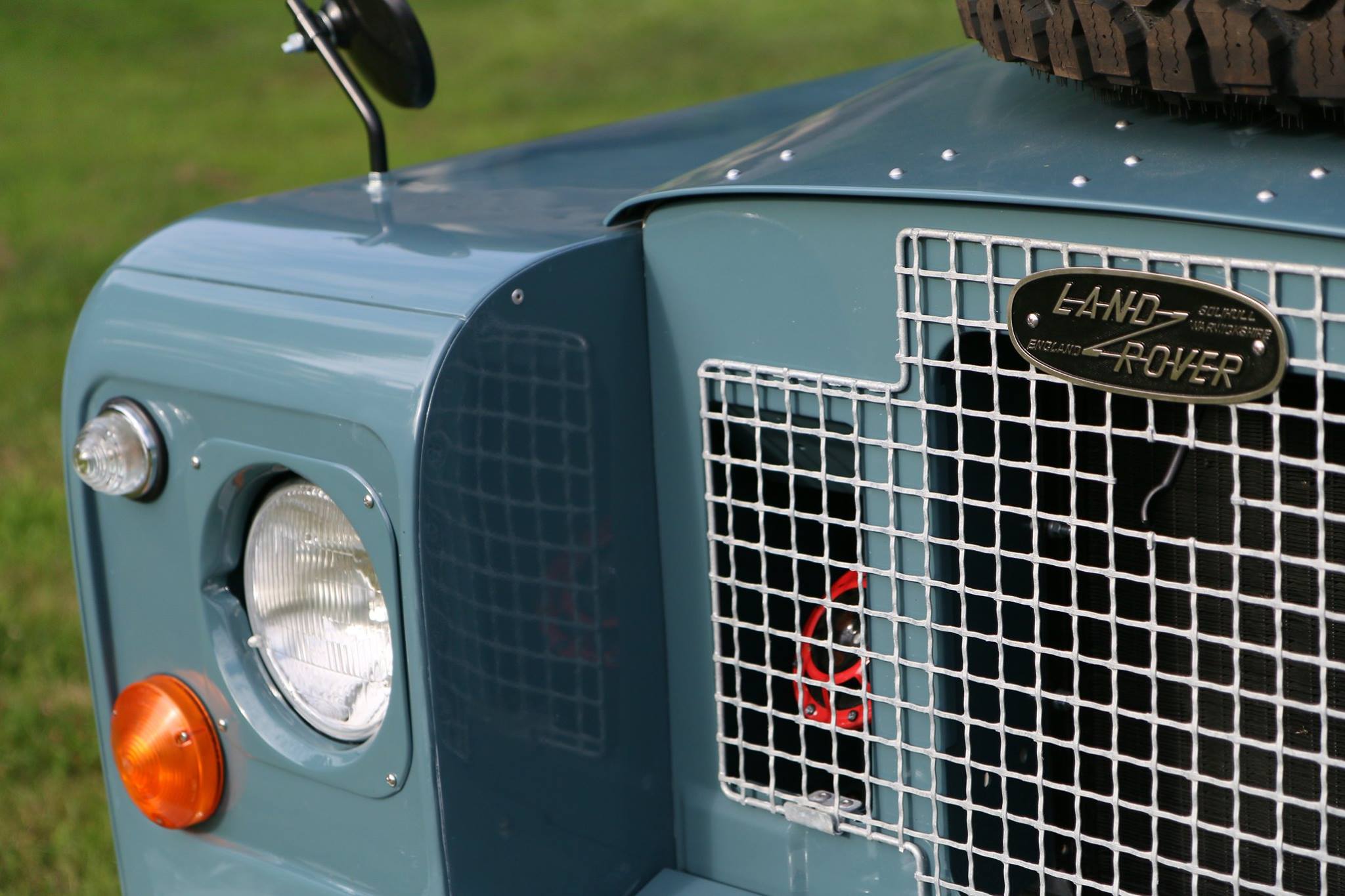

• New headlight buckets
• New old stock shift boots
• Galvanized bulkhead vertical supports
• Galvanized under seat tool box
• New bumper
• All bolts replaced
• New hood to grille buffer strip
• Exmoor Trim soft top canvas
• Rear folding step

Interior

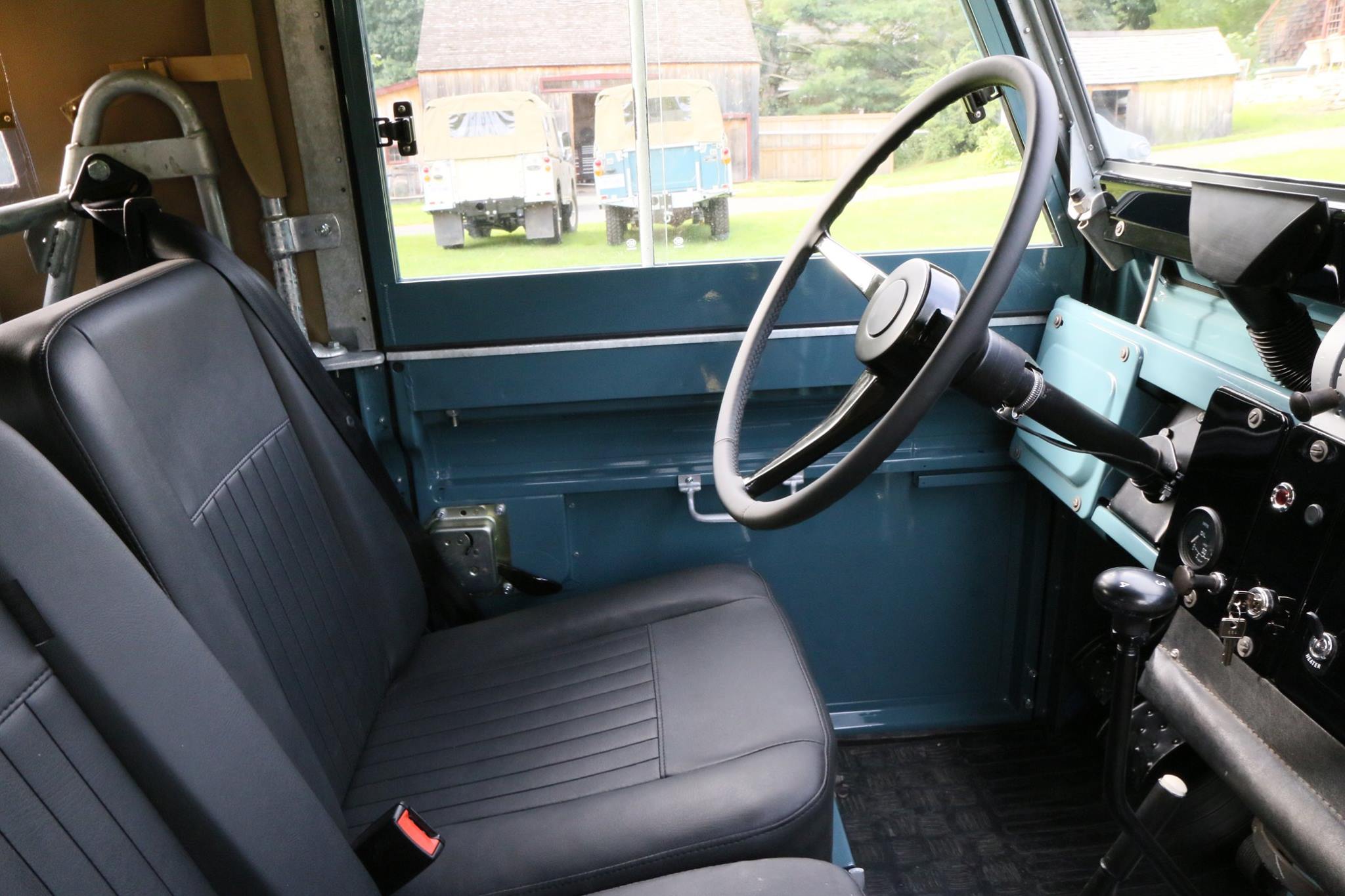

• Exmoor Trim deluxe seats
• New floor mats
• New rubber mat in load bay
• Galvanized seat belt bar
• New Defender shoulder harness seat belts
• Exmoor Trim rear inward facing bench seats
• Mt. Mansfield high output heater
• Retracting rear seat belts

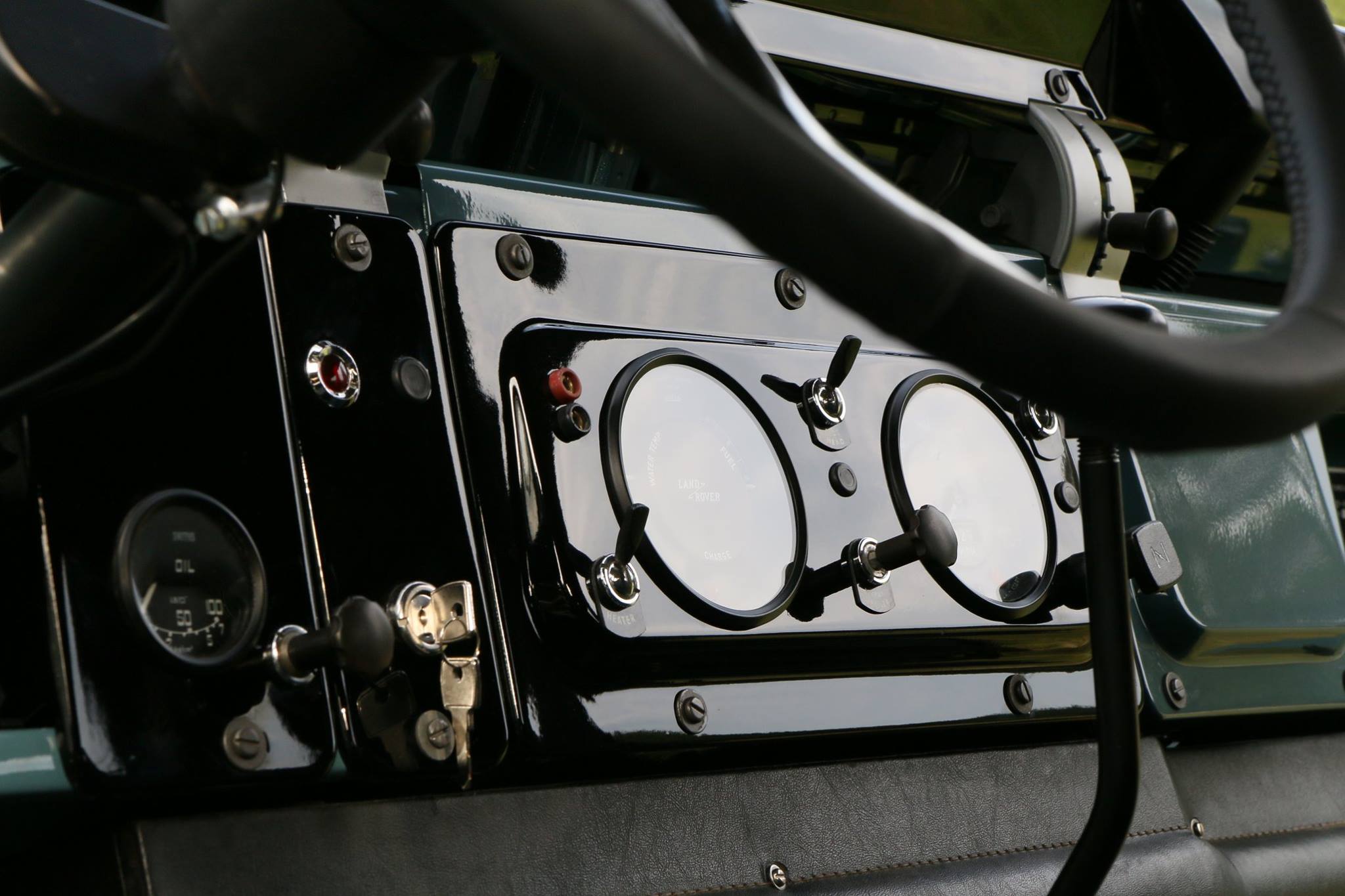

• NOS oil pressure gauge

Steering

• Haystee power steering
• New tie rod ends
• New steering relay

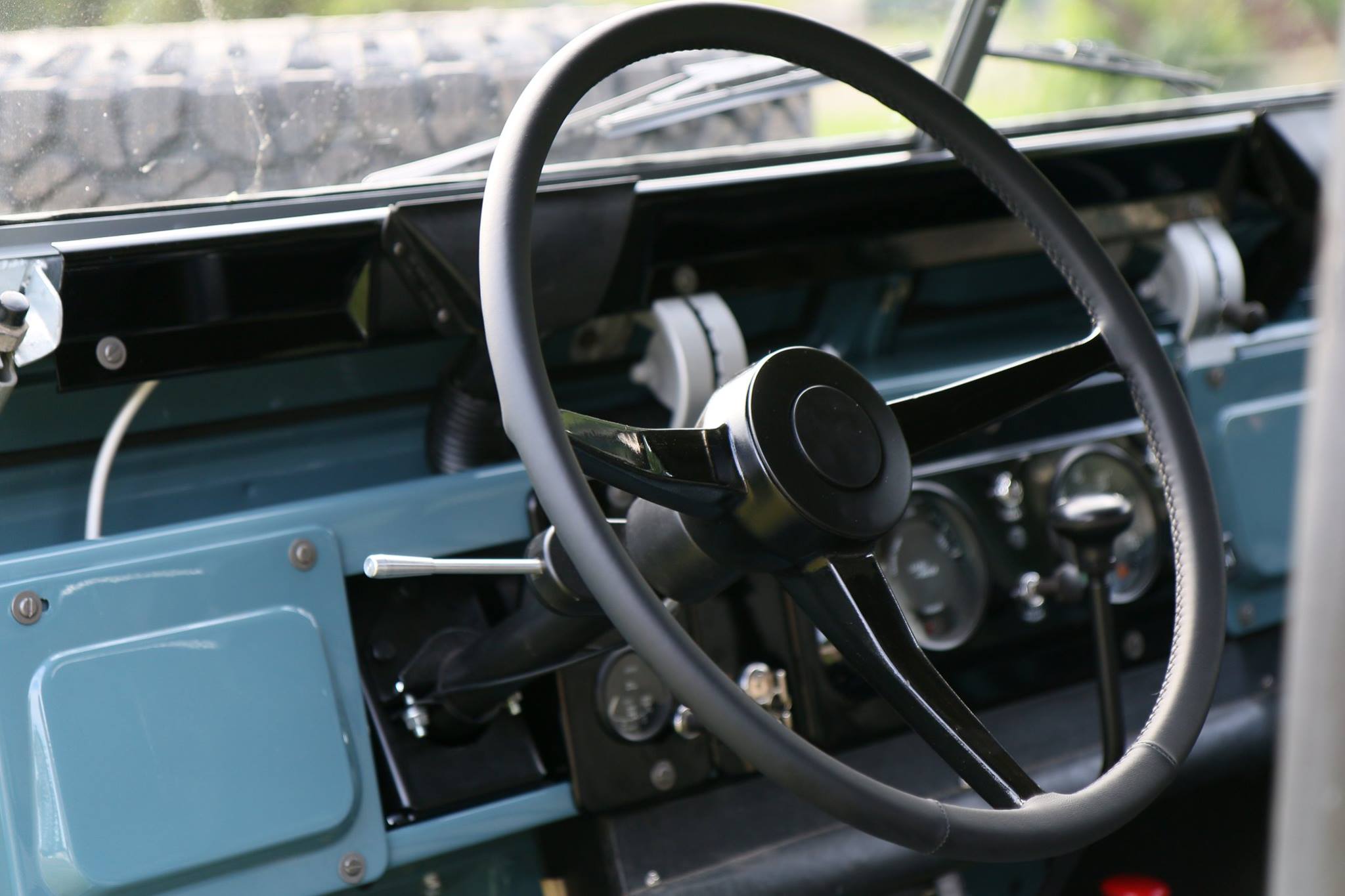

• Leather wrapped steering wheel

Brakes

• Front disc brake conversion
• New rear brake shoes
• Rear drums resurfaced
• New rear brake springs
• New wheel cylinders
• New brake booster
• New master cylinder
• New brake lines
• New stainless braided brake hoses
• New brake light switch
• Rebuilt parking brake assembly

Electrical

• New cloth covered body wiring harness
• New cloth covered engine wiring harness
• New cloth covered frame wiring harness
• New headlight pigtails

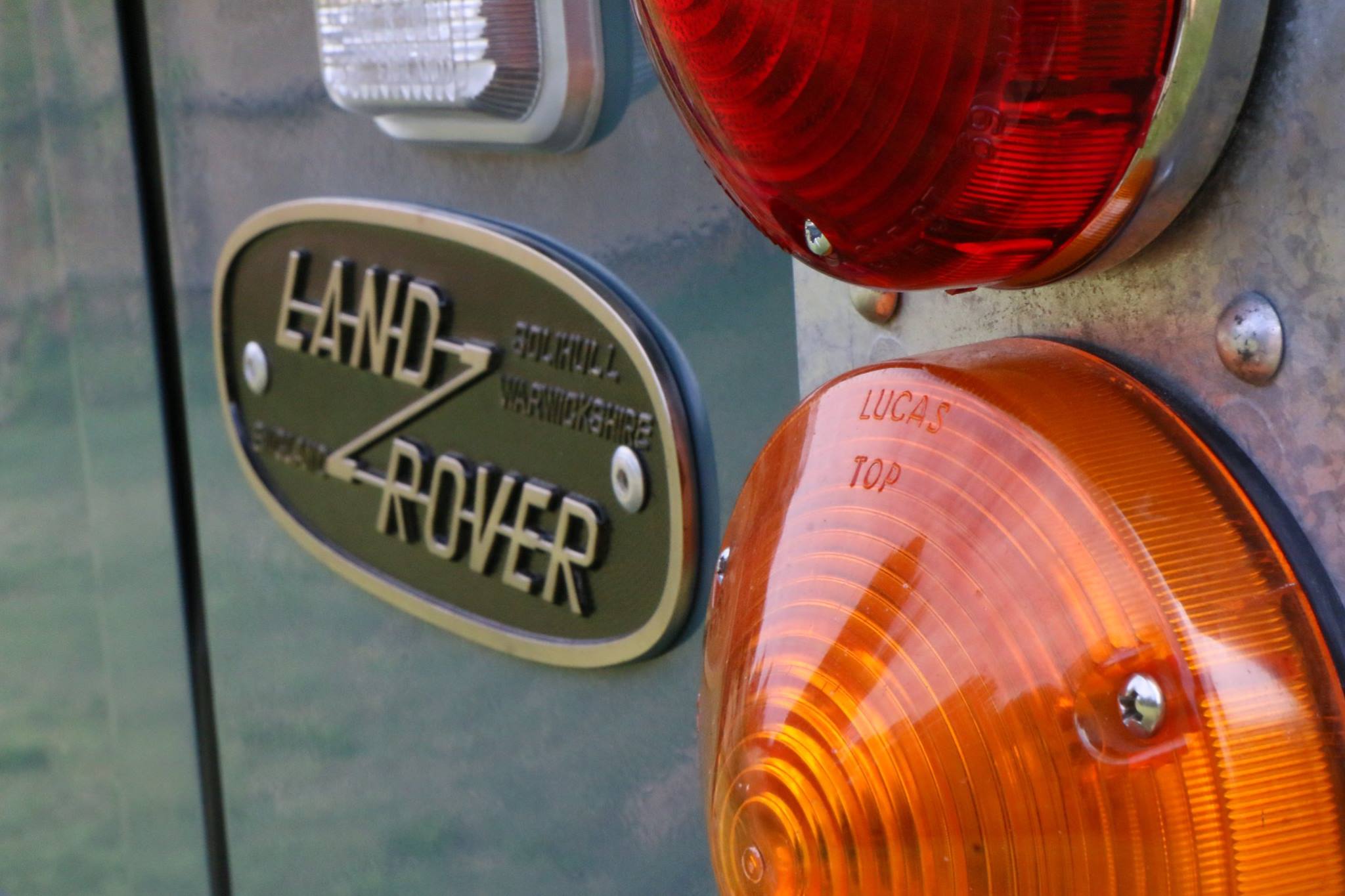

• New original type parking lights, turn signals and brake lights
• New original type battery cables
• Hella horn
• New fuse box
• Hella headlights

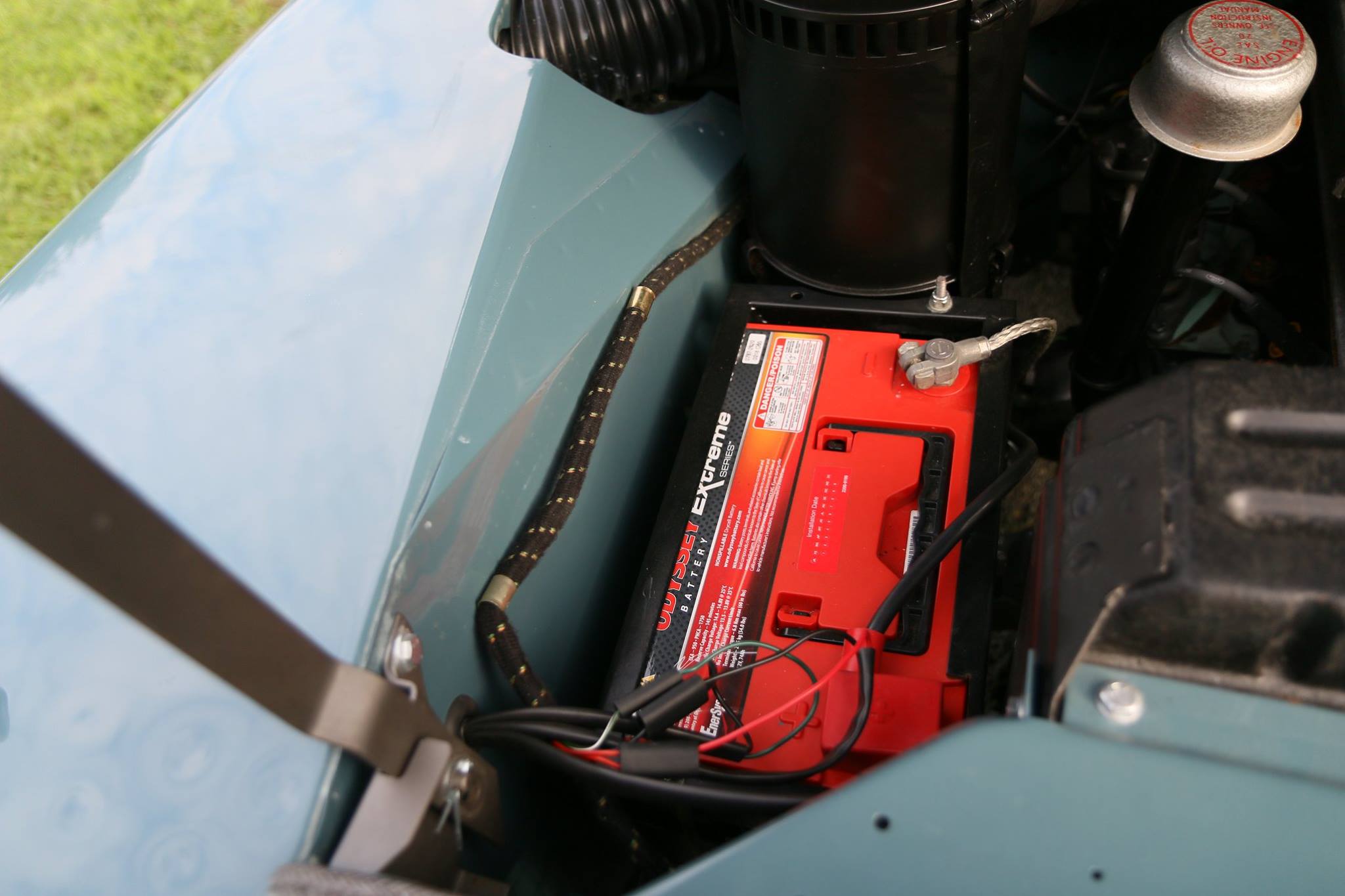

• Odyssey Extreme battery

Fuel System

• Stainless steel fuel tank
• New fuel tank bushings and mounting hardware
• New fuel level sending unit
• New Facet electric fuel pump
• New fuel lines
• New fuel filter
• New choke cable
• New gas tank to body foam seal

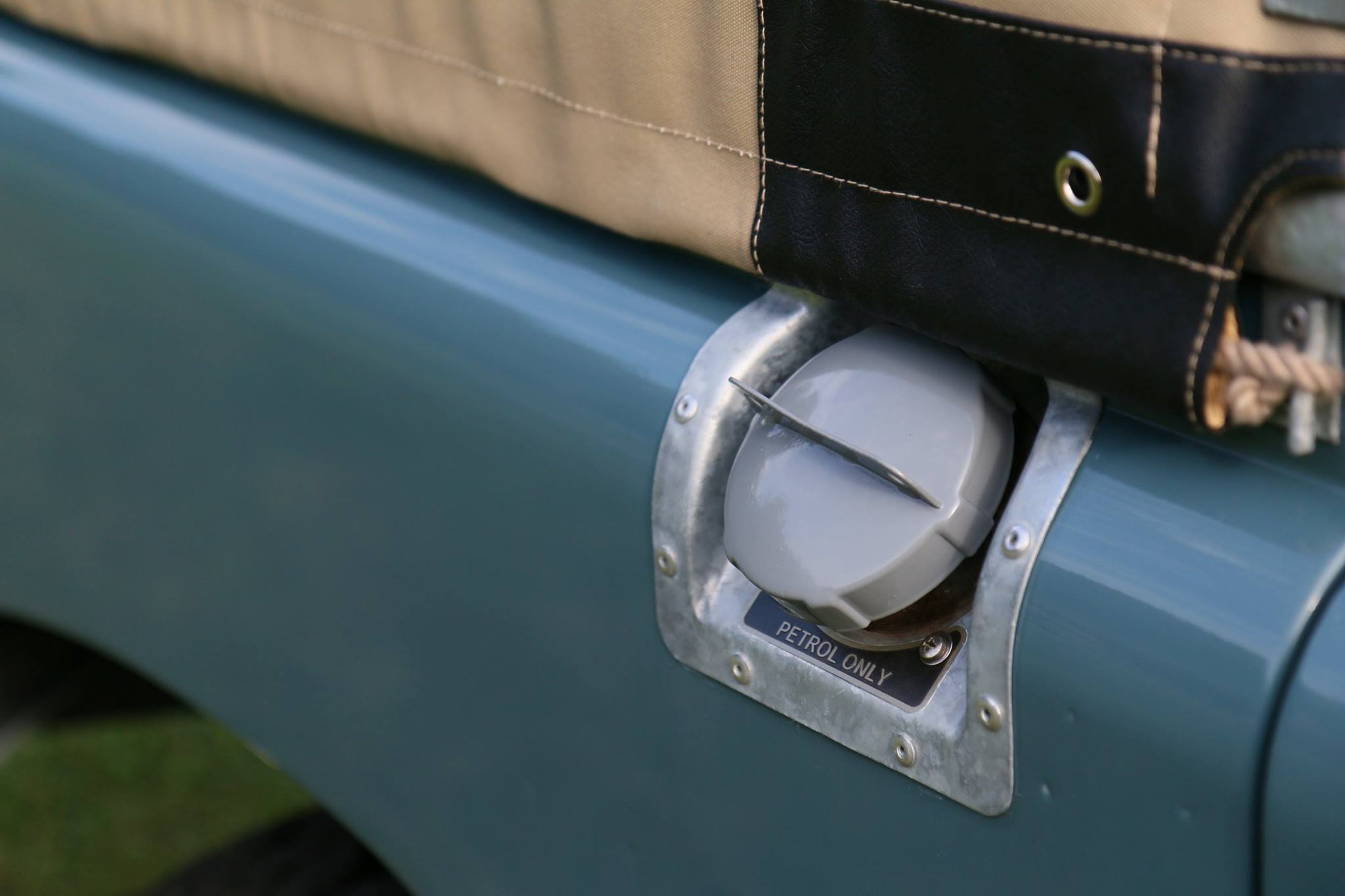

• Unleaded fuel label

Tires and wheels

• Five new Goodyear Duratrac tires
• New valve stems
• New 16" welded steel wheels
